Need explo diagram of H&R 1906
Where can I get A exploded Diagram for my gun? Numrich parts does not hAve them. Need cylinder 7 shot,
mainspring, cylinder retention pin.
-

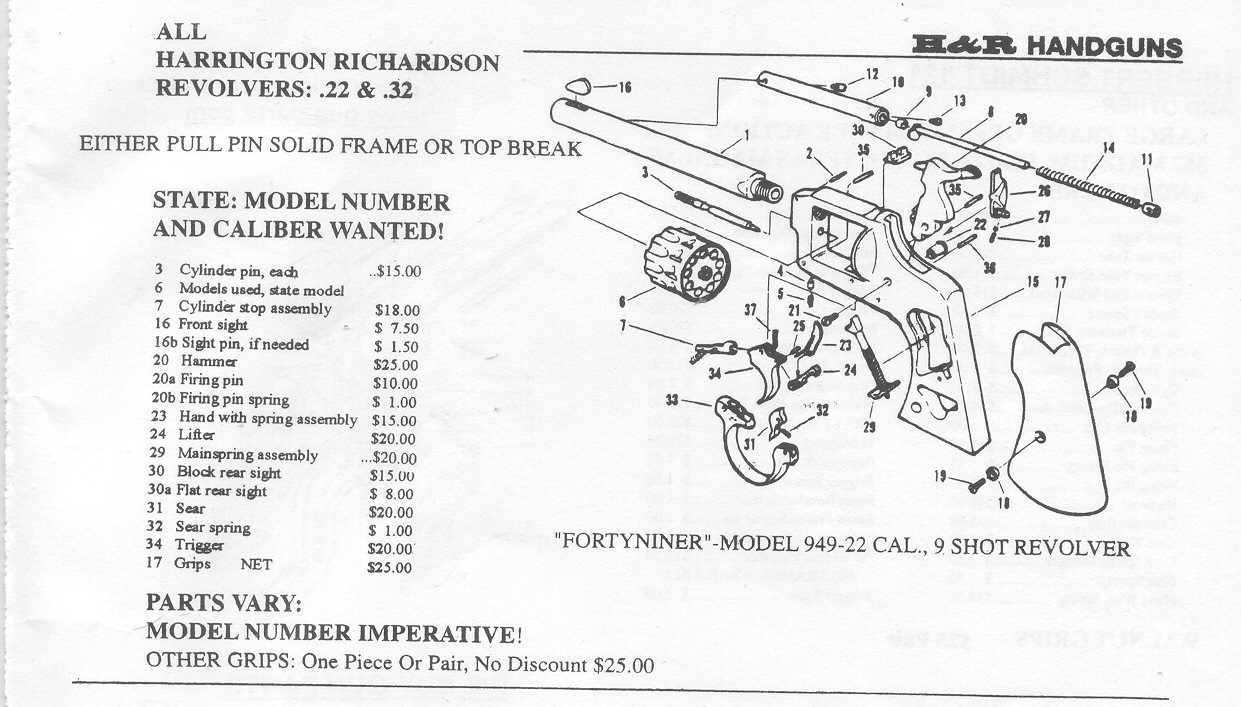

Is it among these?
0 -
The Trapper model (later designated the 722) was derived from the 1906 and also has a 7 shot cylinder (I have one), possible that the parts are the same. I haven't found a schematic specific to either one.
3 -
The exploded view shown is a good generic one for later models, but the earlier ones such as 1906 used flat springs, so is somewhat different. The 1906 (1907-41), Trapper (1924-41) & Hunter (1925-29) may be possible sources of the parts you seek and were in same serial# range. I gleaned this info from old posts from Bill Goforth & Jim Hauff. In your shoes I would haunt the gun shows looking for a cannibalized parts gun as many of the ones I see have those parts left. Even so, some hand fitting may be necessary as was done by the original assemblers.
3
