High standard hd military

tobyfloyd61

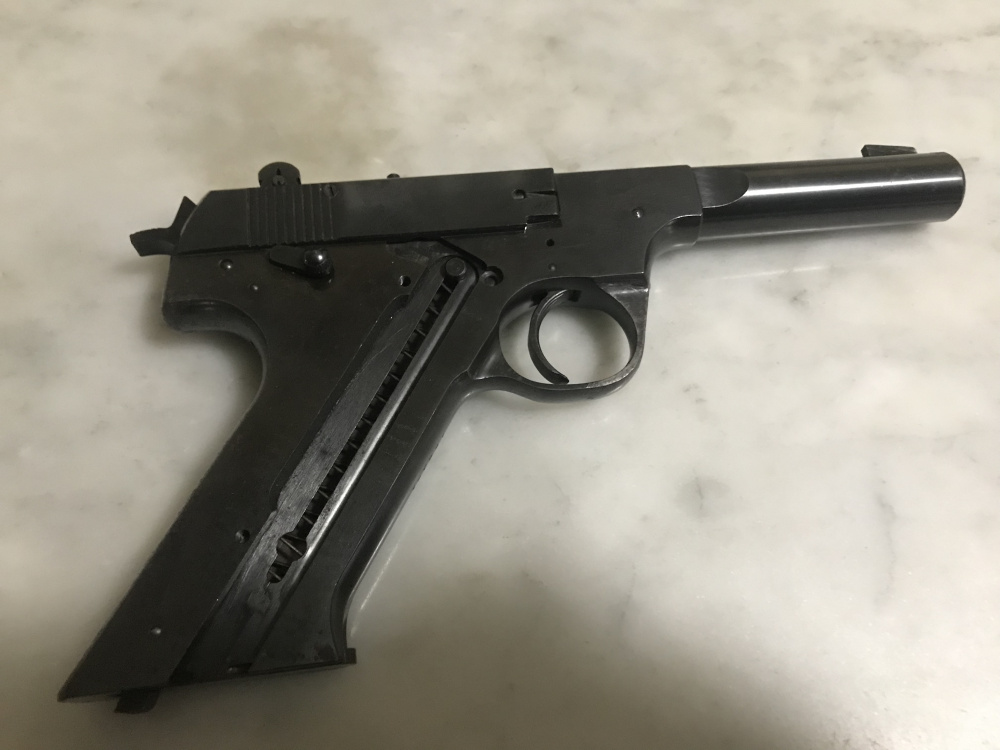

Hi is my high standard hd military missing something I’m looking for a set of grips and screw but all the grips I see have a cut out up at slide now I’m woundering if my pistol is missing that button also what year mfg thanks for any info I put a pic of the grips I’m finding but like I said I have no use for a cut out to the right hand grip




0

Comments

10 comments

Date Votes
  • MIKE WISKEY

    yes, you are missing the 'hold open' and spring, correct grips if a little worn. mine is missing the spring


    0
  • tobyfloyd61

    Thank you are these parts available

    0
  • tobyfloyd61

    I see now how the empty clip would push it up also to hold slide back on last shot

    0
  • BobJudy

    This guy has the slide stop but it is a little pricey,

    High Standard HD Military Slide Lock & Button | Factory Original
    You are considering a vintage High Standard HD Military Slide Lock & Button. It's in good condition with light wear from usage, storage, and handling.

    And Numrich has the spring. Bob

    0
  • tobyfloyd61

    Thanks yea it’s pricey but thank you

    0
  • Geri

    Try Jack first Rapid City SD

    0
  • tobyfloyd61

    Thanks Geri yup they have it and was almost half what that other was thanks a ton got the slide hold back and spring for 49.00 any one have a pic of where spring goes

    0
  • hillbille

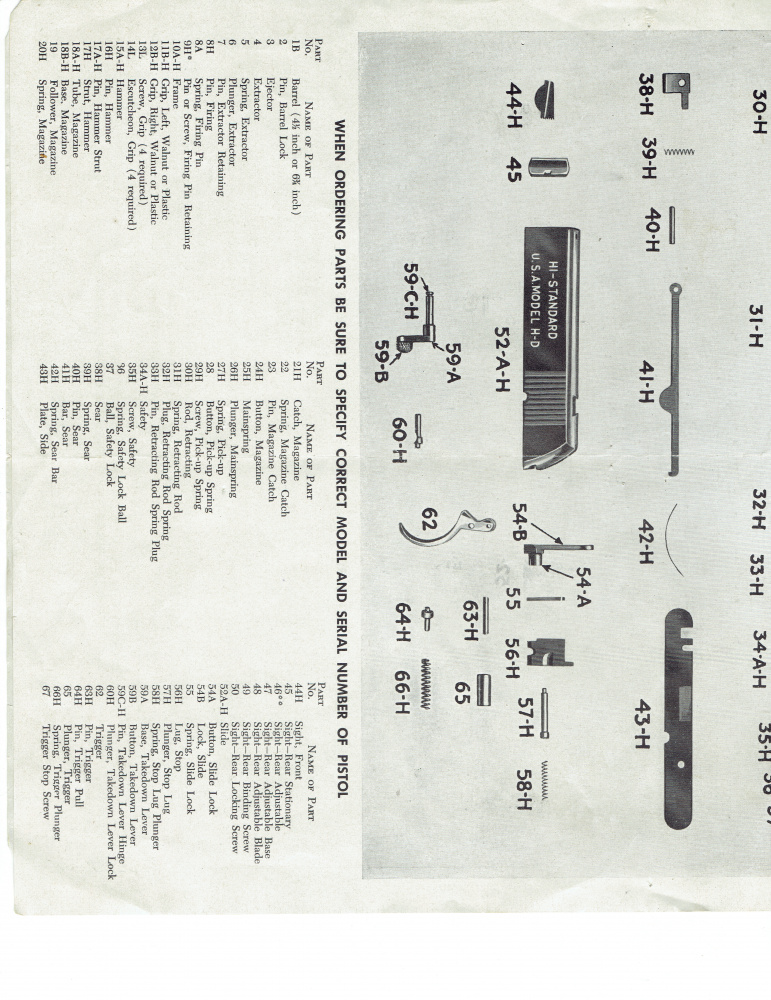

    might try numrich they usually have a diagram schematic for parts, might show you where the spring goes.....

    0
  • tobyfloyd61

    Thanks to all for the help

    0
  • booger

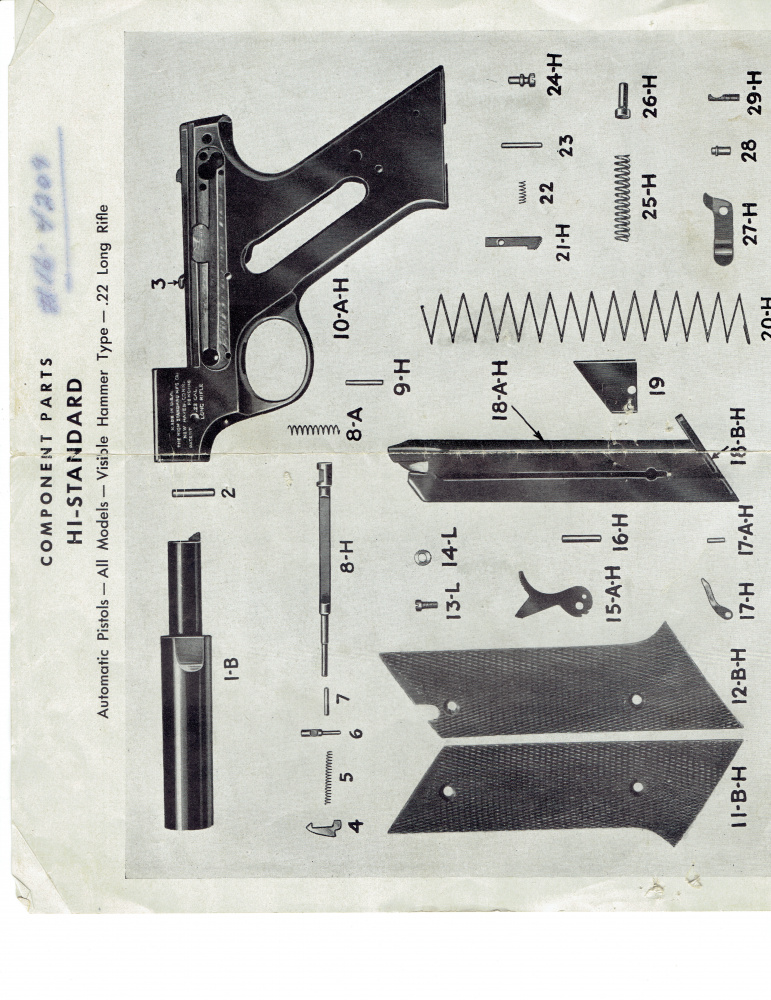

    I'm late to the party but this may help you, or the next guy that comes along and searches. I hope you find the parts you need, great .22 guns.


    0

Post is closed for comments.
