Smith & Wesson Top-Break Double Action .44-40 "Frontier" Trigger Spring
I have this S&W DA top-break .44-40 in hand, and it cycles OK but the trigger does not spring back forward when released.
I got the trigger guard and trigger out, and there is a recess ahead of the trigger with nothing in it. Maybe that's where the trigger spring goes?
GunParts is no help. Someone on a forum stated that parts for these old guns are not available anywhere.
Any help appreciated. Thanks!
-

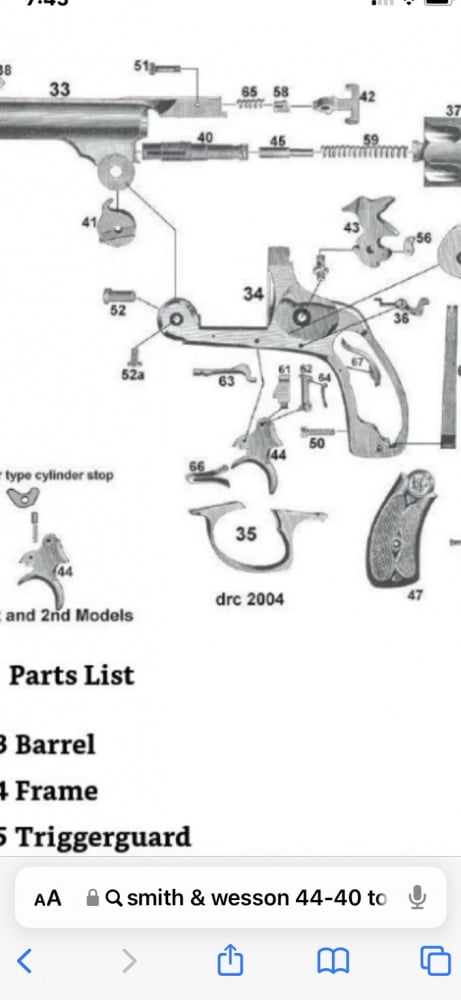

I found this schematics of Smith&Wesson 44-40 top break. It looks to be a flat spring. If you can’t locate a spring it’s possible to make one for it. I have a formula from an old gun smithing book on how to make and temper a spring.
0 -
That little V shaped flat spring might be fabricated out of a flintlock frizzen return spring. Those are pretty common.
0 -
Many years ago I sent off for some material with which you could made your own springs.
From Brownells?? All I remember was I made a spring that worked but it took multiple tries to do it right.
